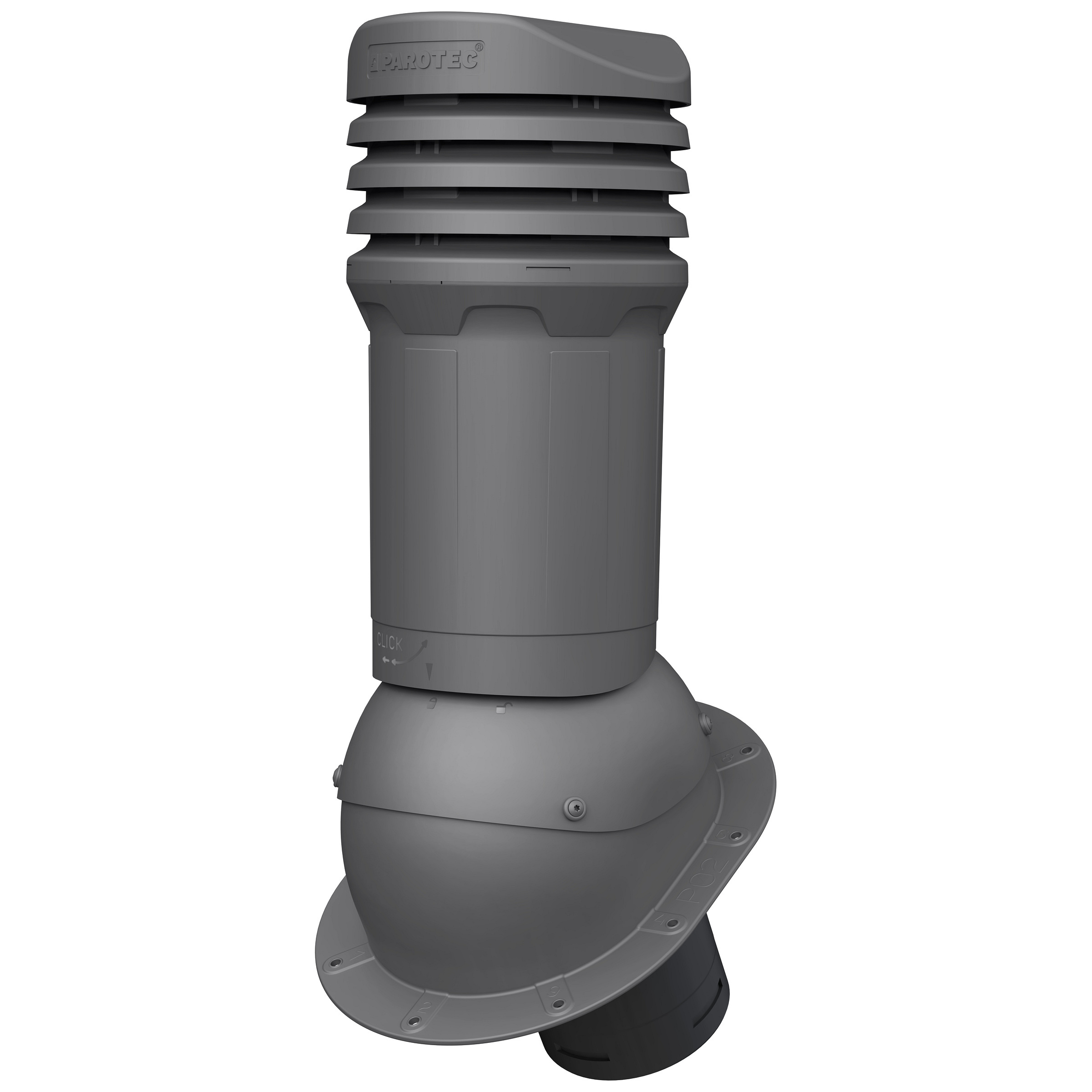

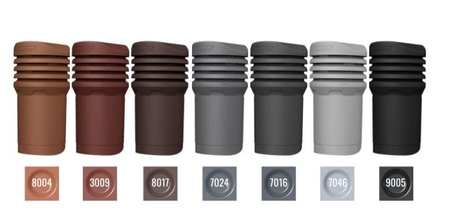

Insulated roof vent FLUXAR Ø125mm for flat sheets and bitumen roofing

Insulated roof vent FLUXAR DN 125mm

for flat sheets and bitumen roofing

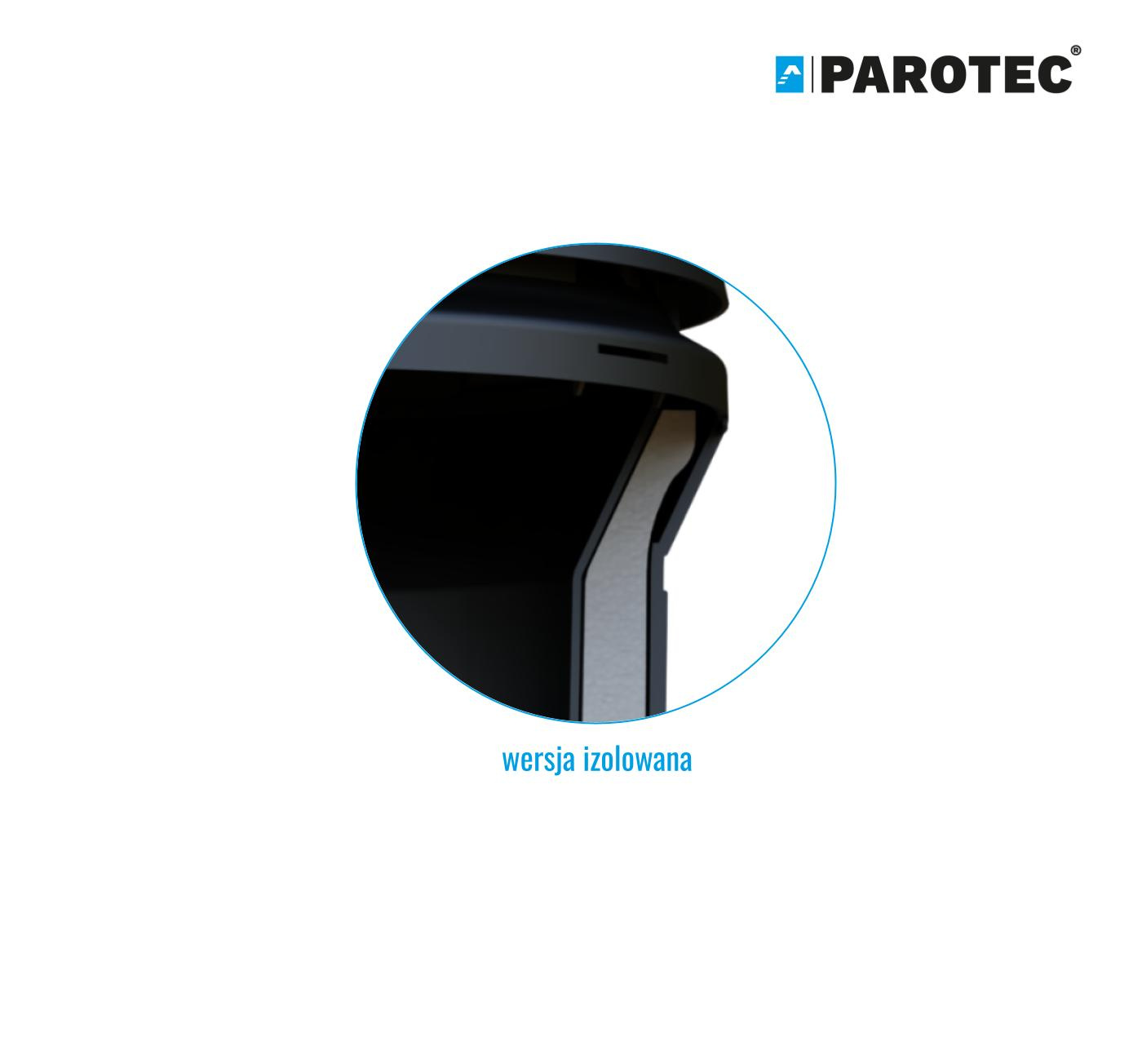

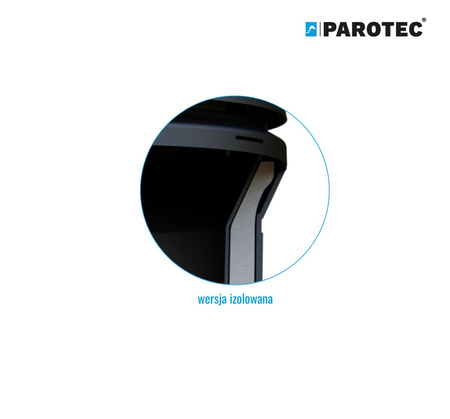

Insulated roof vent DN125  - The insulated version is provided with an additional thermal insulation layer that minimizes the formation of condensation in the roof vent duct. The roof vent consists of elements connected by the "click" method, which allows for quick assembly and disassembly of the cowl, for example, for technical inspection. Mounted within the range of adjustment from 0° to 50°. The package contains all the components necessary for the installation of the roof vent.

The FLUXAR system comes in two variants:

• KOS - with condensate drain - allowing excess condensate to be drained outside the roof vent,
• KIZ - insulated - preventing condensation in the ventilation duct.

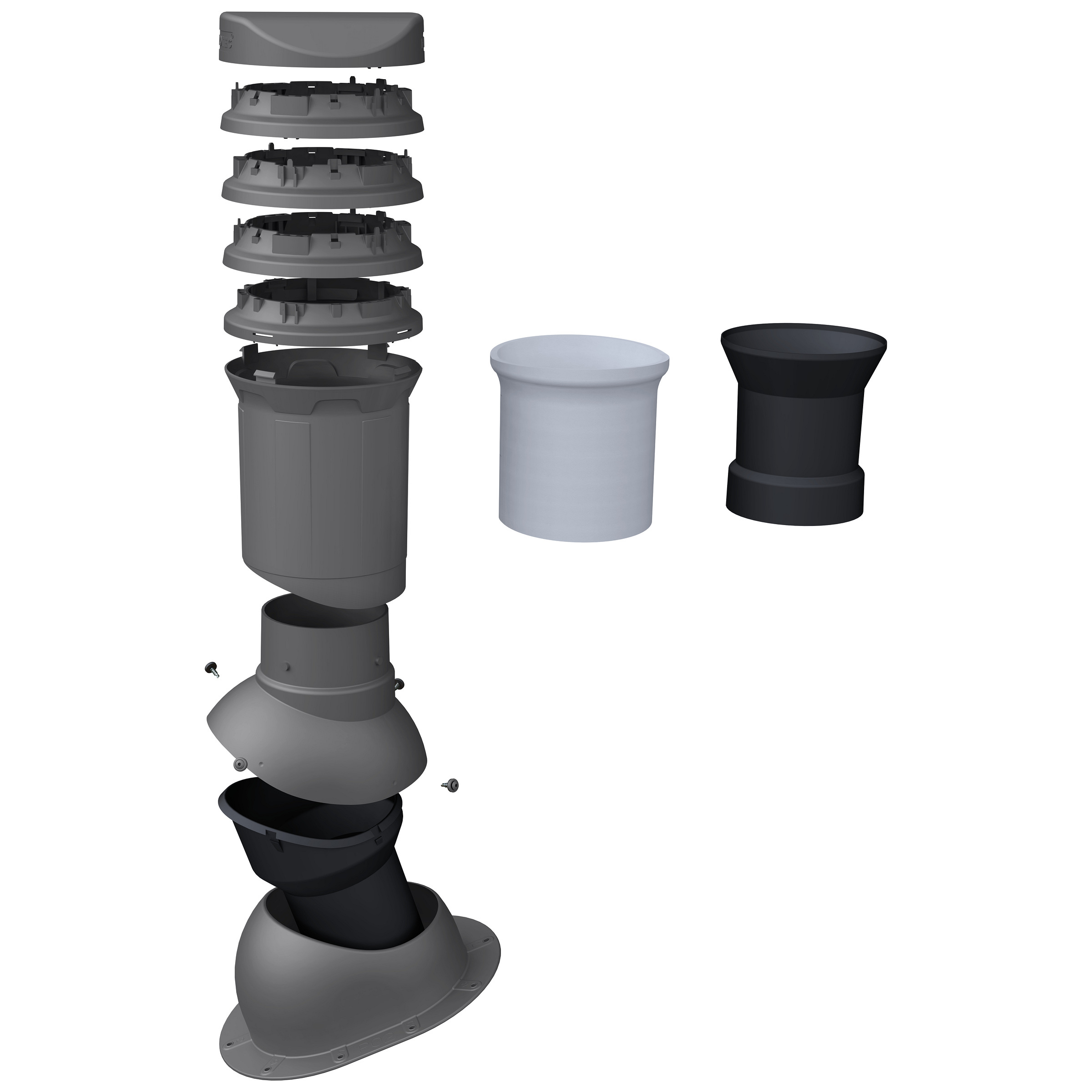

Package includes:

• roof vent core in the insulated version;
• bowl;
• connection spigot;
• adapter for flat coverings;

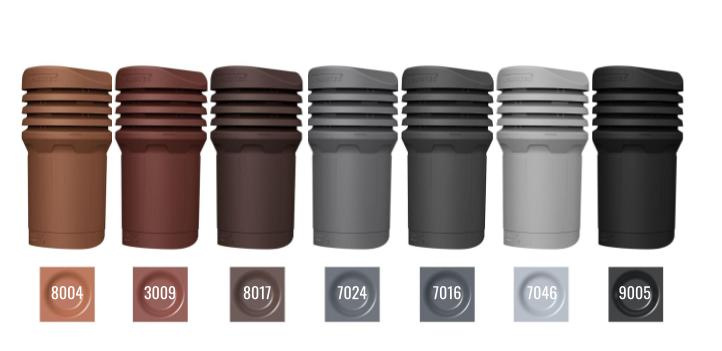

• 4 pcs. of PANHEAD screws in matching color;
• 10 pcs. of FARMER screws in matching color.
