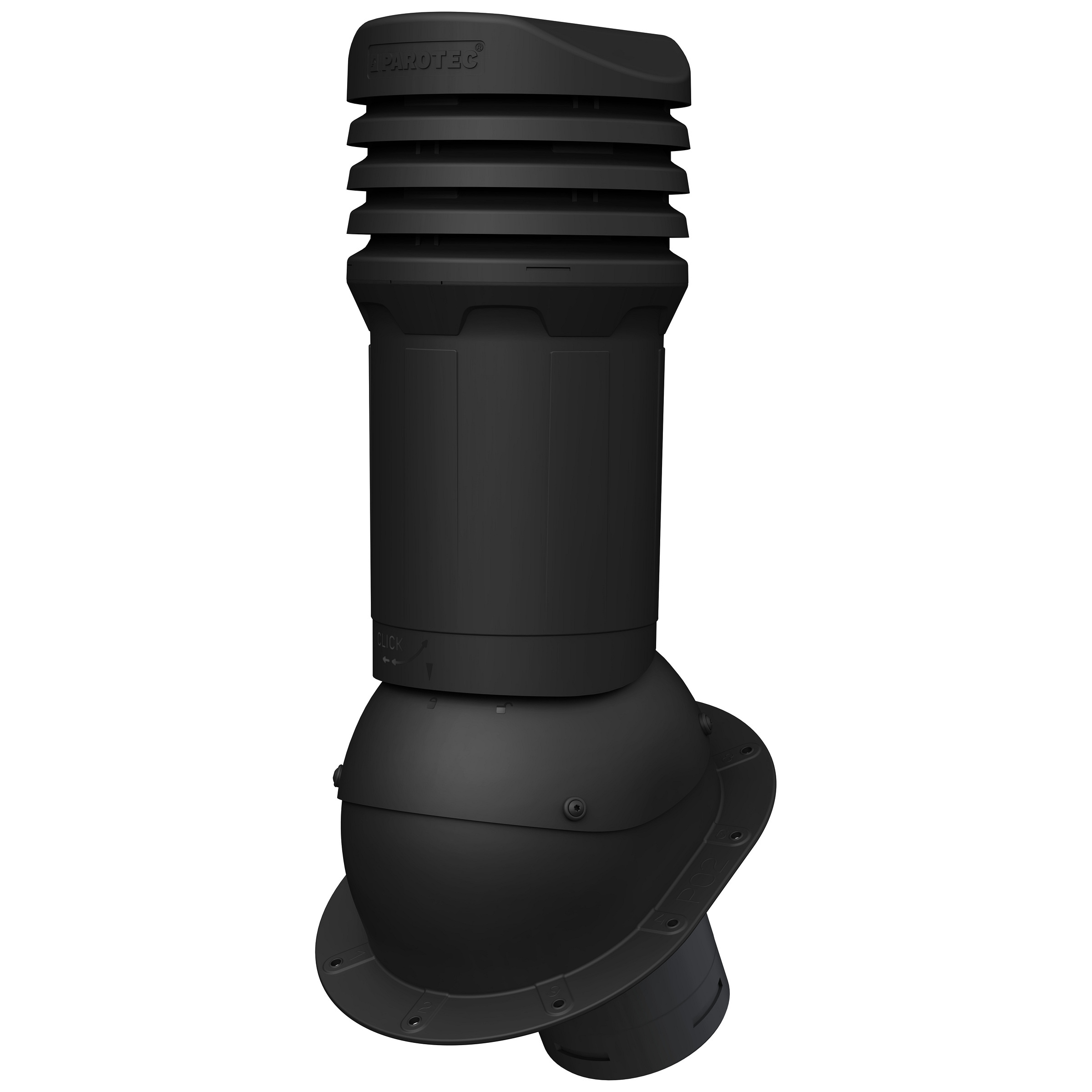

Insulated roof vent FLUXAR Ø125mm for flat sheets and bitumen roofing

  • Insulated roof vent with condensate drain, designed for flat sheets and bitumen roofing.
Insulated roof vent FLUXAR Ø125mm for flat sheets and bitumen roofing
Insulated roof vent FLUXAR Ø125mm for flat sheets and bitumen roofing
Insulated roof vent FLUXAR Ø125mm for flat sheets and bitumen roofing
Insulated roof vent FLUXAR Ø125mm for flat sheets and bitumen roofing
Insulated roof vent FLUXAR Ø125mm for flat sheets and bitumen roofing
Insulated roof vent FLUXAR Ø125mm for flat sheets and bitumen roofing
New in
Add to compare
Easy return of products within 14 days from the date of purchase without giving reasons
Free delivery from 984,00 zł
This product is not available in a stationary store
Parameters
Producer:
Product code:
KIZ.125.P02.9005
Series:

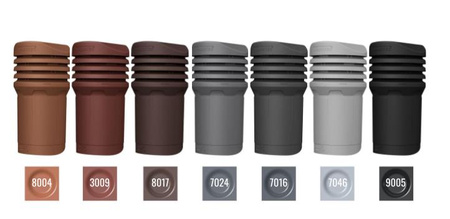

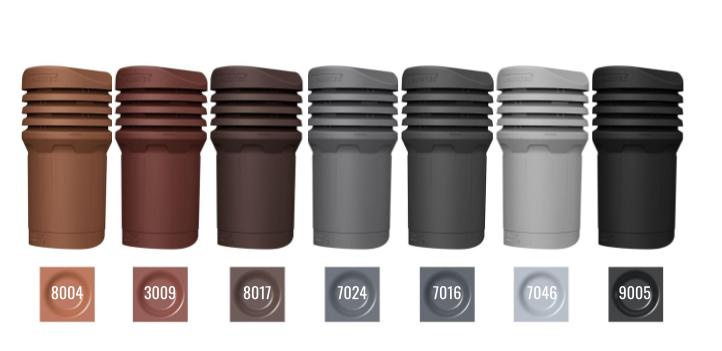

Color:
Black - RAL 9005

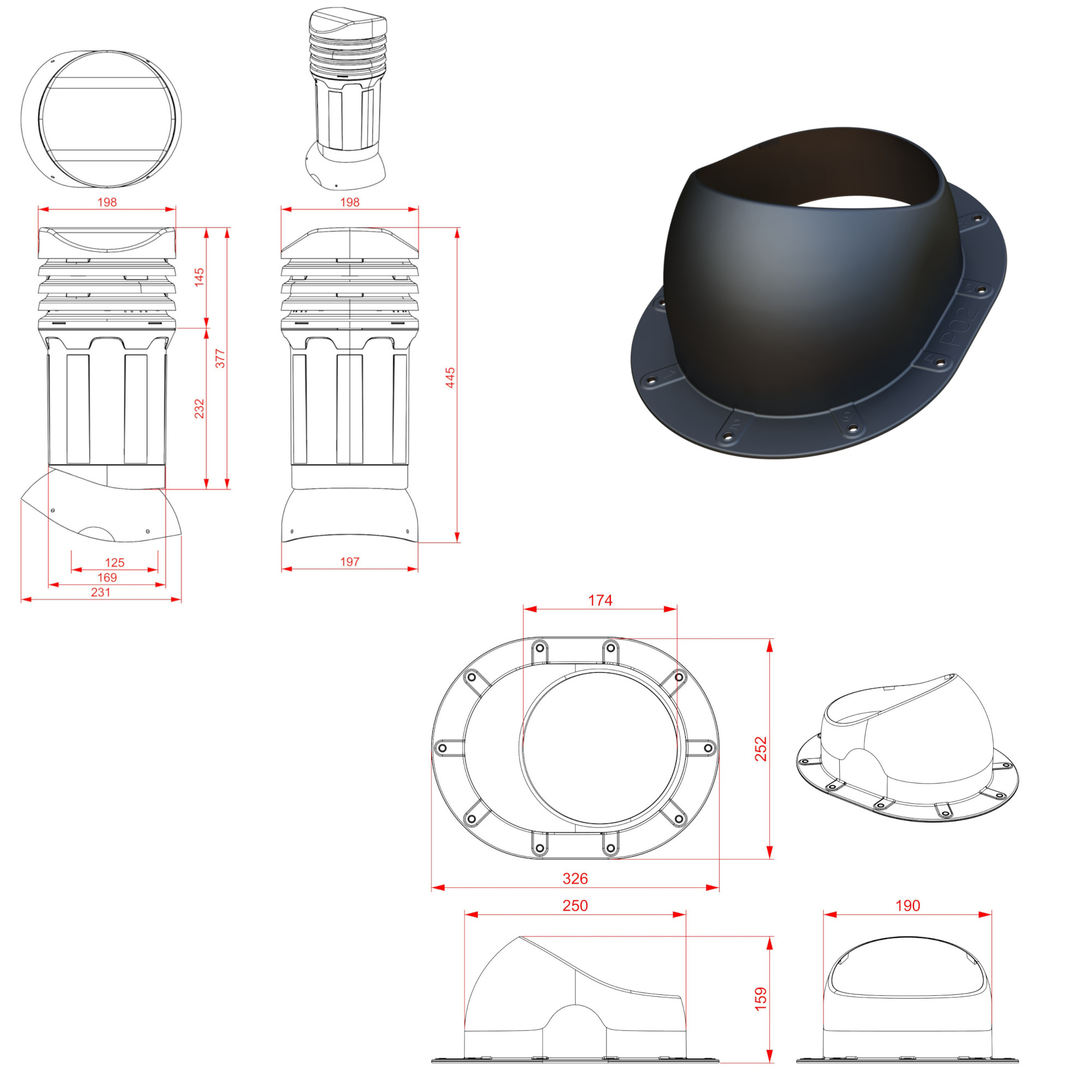

Diameter:
Ø125 mm
Regulated tilt angle:
0° to 50°
Height:
375 mm
Condensation:
Insulation
Purpose of use:
P02 - flat covering
Version:
Ventilating
Material:
PP - polipropylene
Spirit level:
Yes
Pliki do pobrania





Insulated roof vent FLUXAR DN 125mm

for flat sheets and bitumen roofing

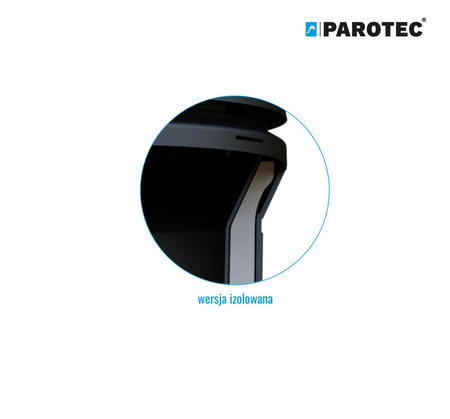

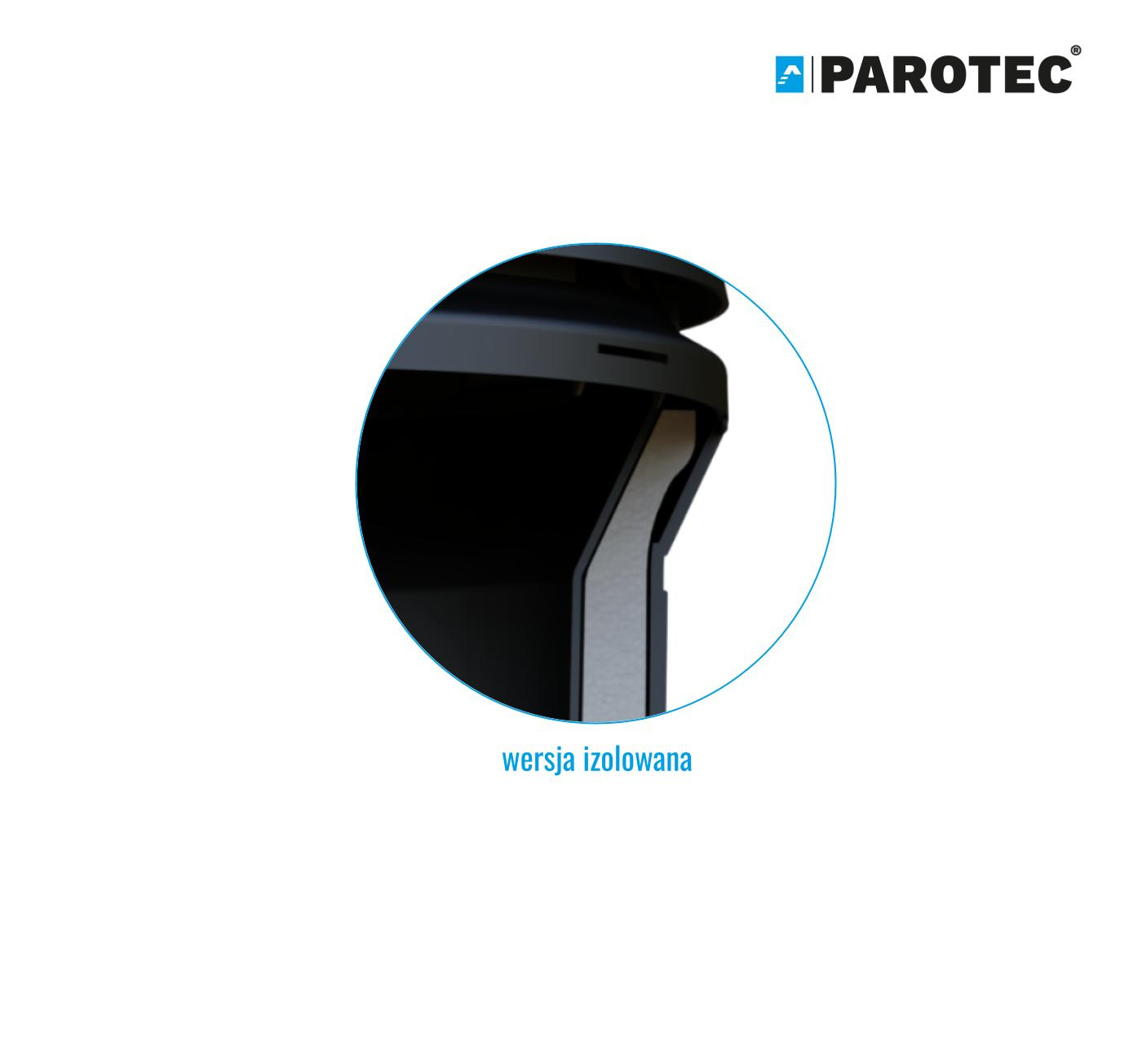

Insulated roof vent DN125  - The insulated version is provided with an additional thermal insulation layer that minimizes the formation of condensation in the roof vent duct. The roof vent consists of elements connected by the "click" method, which allows for quick assembly and disassembly of the cowl, for example, for technical inspection. Mounted within the range of adjustment from 0° to 50°. The package contains all the components necessary for the installation of the roof vent.

The FLUXAR system comes in two variants:

  • KOS - with condensate drain - allowing excess condensate to be drained outside the roof vent,
  • KIZ - insulated - preventing condensation in the ventilation duct.

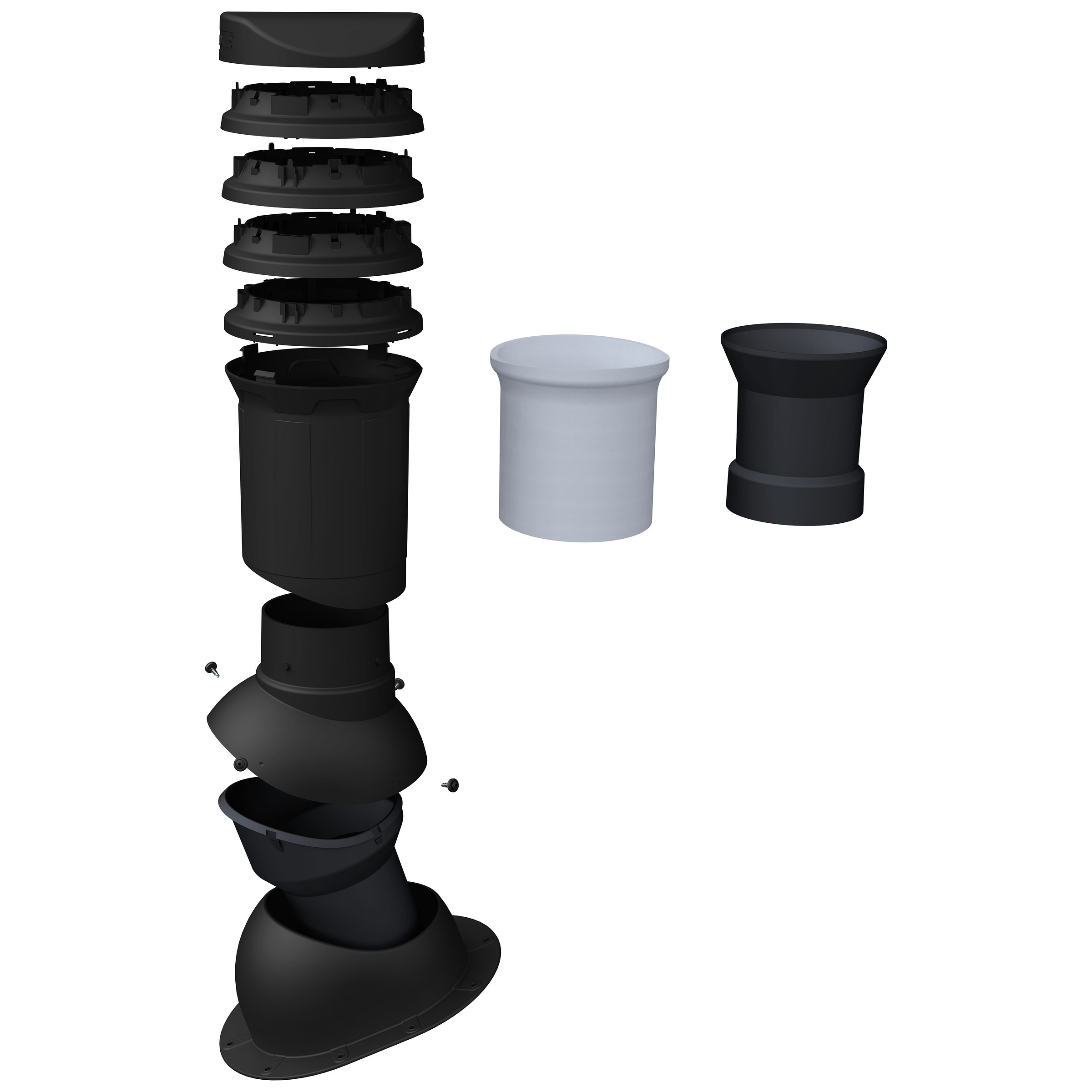

Package includes:

  • nasada kominka w wersji izolowanej;
  • czasza;
  • króciec;
  • adapter for flat coverings;
  • 4 pcs. of PANHEAD screws in matching color;
  • 10 pcs. of FARMER screws in matching color.
