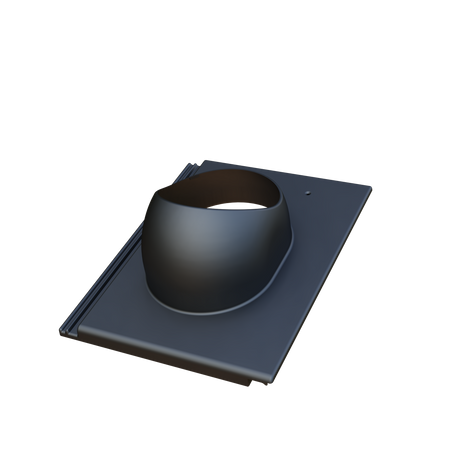

Antenna passage FLUXAR for ceramic and concrete tiles
- Passage used to bring the antenna mast above the roof surface. Made of thermoplastic elastomer (TPV); allows sealing of masts of different diameters.
Easy return of products within 14 days from the date of purchase without giving reasons
Free delivery from 984,00 zł
Antenna passage FLUXAR for ceramic and concrete tiles
Adapter:D07_Braas/Tegalit Protegon
Color:Graphite - RAL 7024
Parameters
Producer:
Product code:
PA.D07.7024
Adapter:
D07_Braas/Tegalit Protegon
Color:
Graphite - RAL 7024
Purpose of use:
Tile
Version:
Antenna passage
Material:
TPV - thermoplastic elastomer
, PP - UV-stabilized dyed in the mass
Średnica przewodów:
19-90 mm
Core height:
184 mm
Regulated tilt angle:
0° to 50°
Pliki do pobrania
Antenna passage FLUXAR
for ceramic and concrete tiles
Antenna passage - Passage used to bring the antenna mast above the roof surface. The product is designed for cables with a diameter in the range of 19-90 mm. Wide range of colors.
Package includes:
- adapter with the profile of the corresponding tile - according to the list in the appendix;
- bowl;
- adjustable TPV core;
- metal clamp;
- 4 pcs. of PANHEAD screws in matching color;
- 10 pcs. of FARMER screws in matching color.
