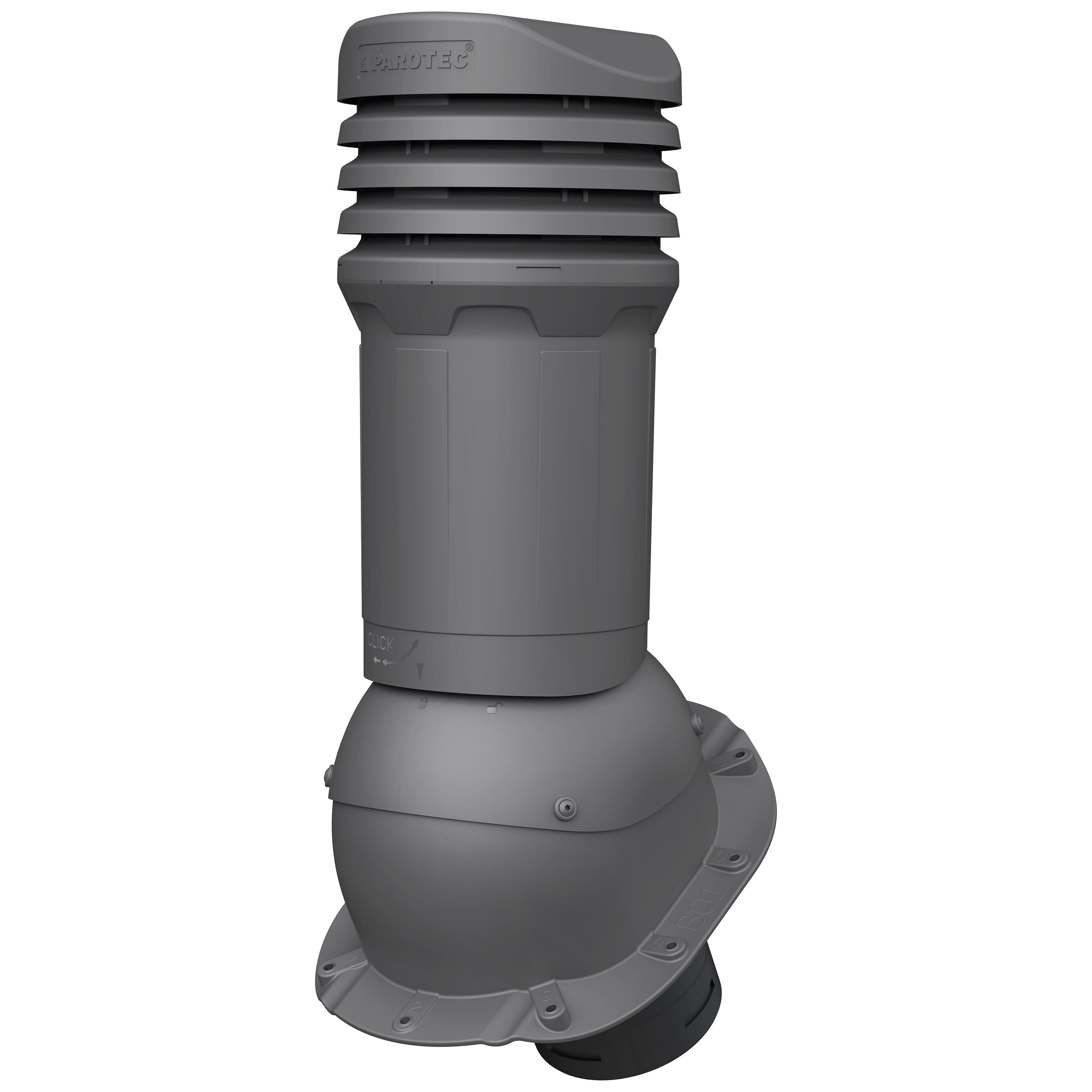

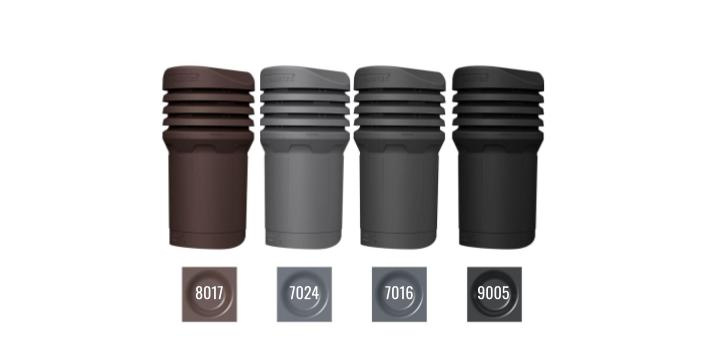

Insulated roof vent FLUXAR Ø125mm for metal sheet tiles

Insulated roof vent FLUXAR DN 125mm

for metal sheet tiles

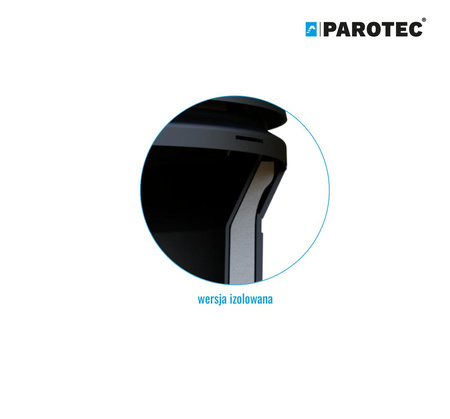

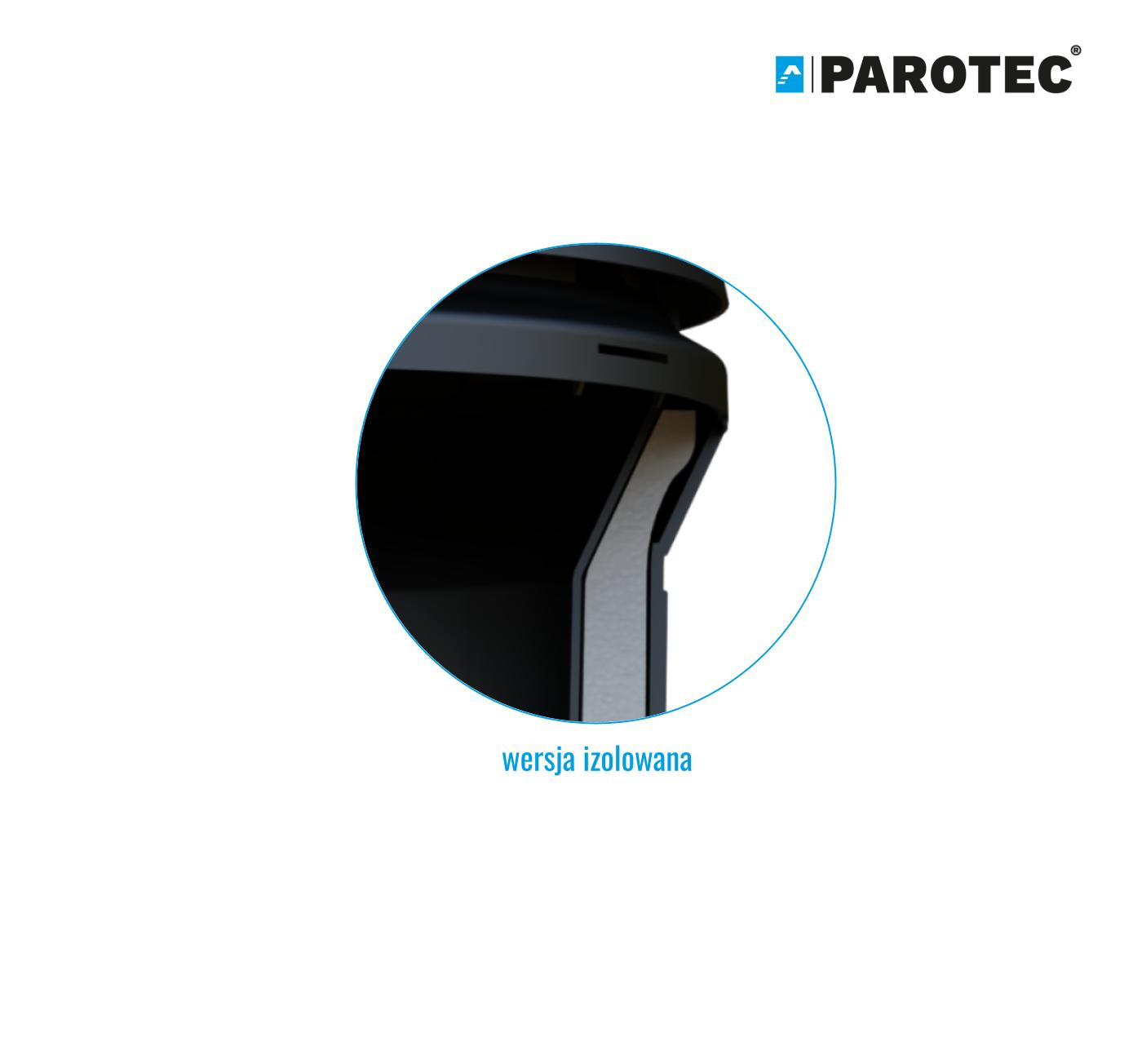

Insulated roof vent DN125 - The insulated version is provided with an additional thermal insulation layer that minimizes the formation of condensation in the roof vent duct. The roof vent consists of elements connected by the "click" method, which allows for quick assembly and disassembly of the cowl, for example, for technical inspection. Mounted within the range of adjustment from 0° to 50°. The package contains all the components necessary for the installation of the roof vent. For a list of roofing sheet and panel sheet models, see the appendix.

The FLUXAR system comes in two variants:

• KOS - with condensate drain - allowing excess condensate to be drained outside the roof vent,
• KIZ - insulated - preventing condensation in the ventilation duct.

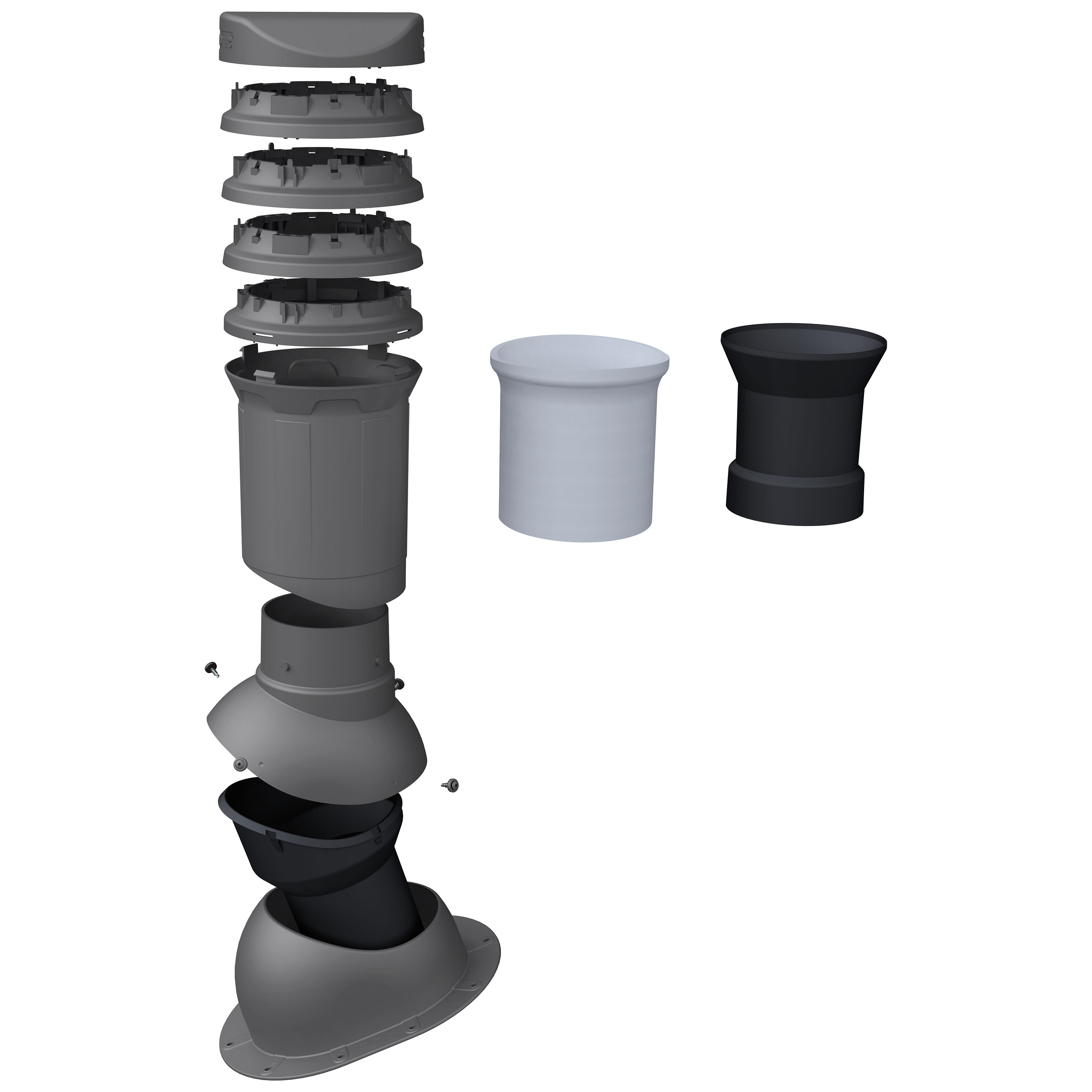

Package includes:

• roof vent core in the insulated version;
• bowl;
• connection spigot;
• adapter with the profile of the corresponding sheet metal - according to the list in the appendix;
• 4 pcs. of PANHEAD screws in matching color;
• 10 pcs. of FARMER screws in matching color.

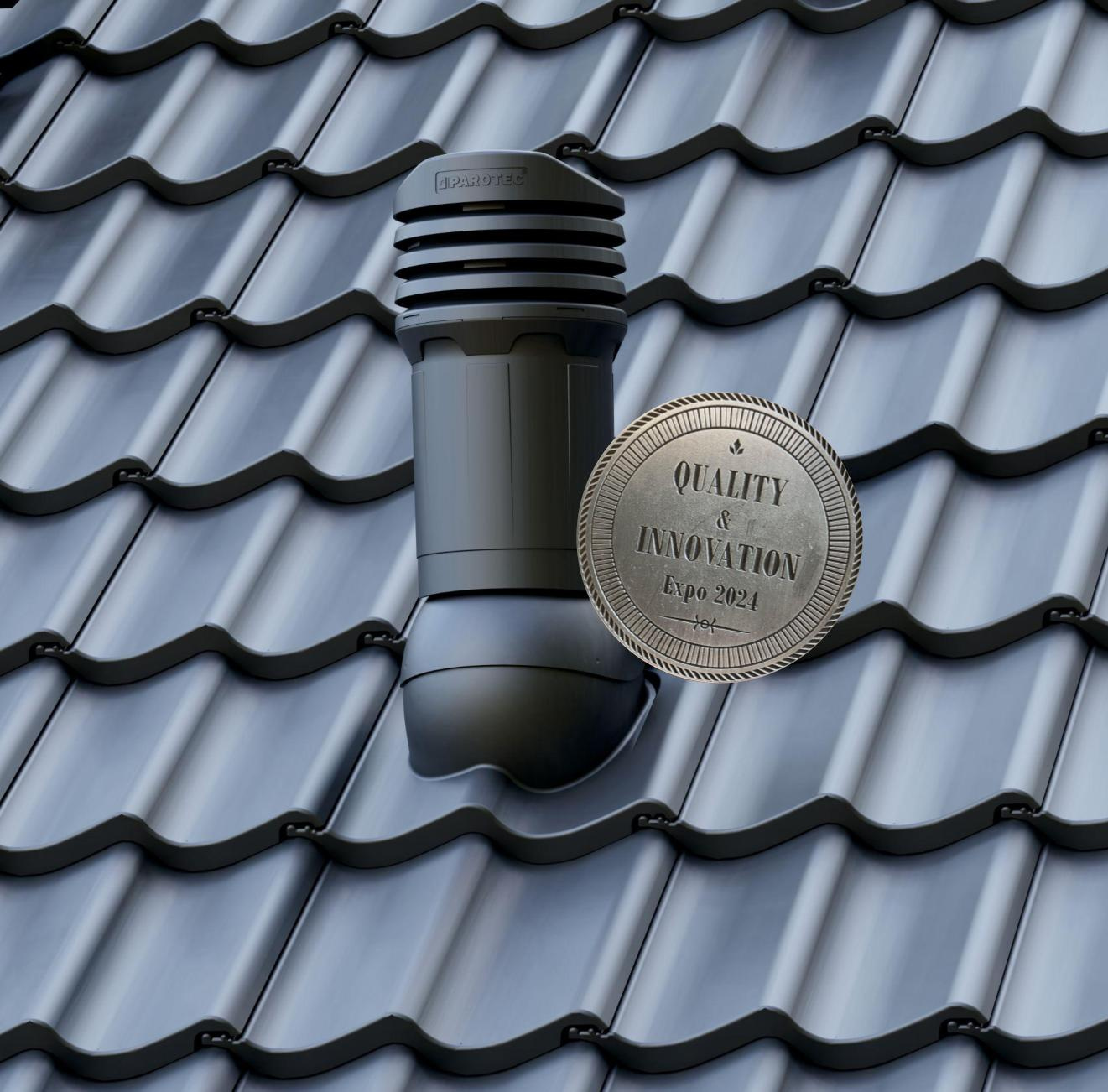

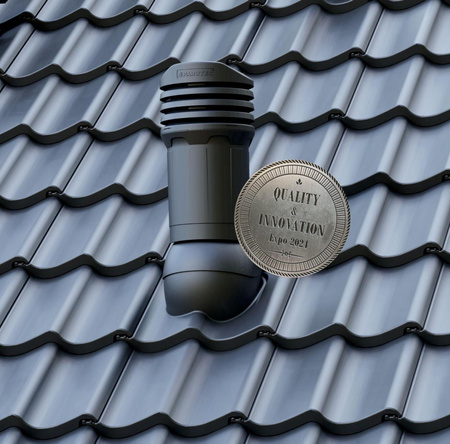

The Fluxar ventilation system won an honorable mention and a medal for Fair Product in the 2nd edition of the Quality and Innovation Expo 2024 fair competition at ROOF EXPO 2024.
