Roof vent with condensate drain FLUXAR Ø125mm for ceramic and concrete tiles

Roof vent with condensate drain FLUXAR DN 125mm

for ceramic and concrete tiles

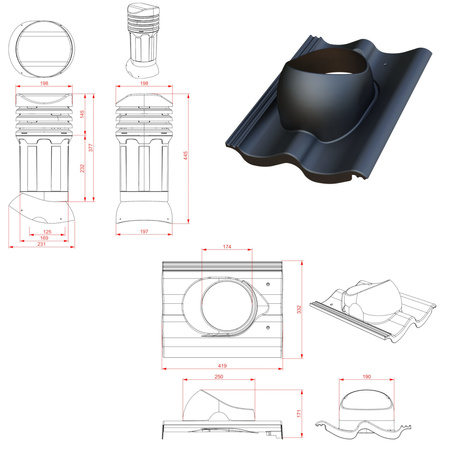

Roof vent with condensate drain DN125 - The version with a condensate drain allows excess condensate to drain outside the roof vent. The roof vent consists of elements connected by the "click" method, which allows for quick assembly and disassembly of the cowl, for example, for technical inspection. Mounted within the range of adjustment from 0° to 50°. The package contains all the components necessary for the installation of the roof vent. For a list of roofing tile models, see the appendix.

The FLUXAR system comes in two variants:

• KOS - with condensate drain - allowing excess condensate to be drained outside the roof vent,
• KIZ - insulated - preventing condensation in the ventilation duct.

 Package includes:

• nasada kominka w wersji z odpływem kondensatu;
• czasza;
• króciec;
• adapter with the profile of the corresponding tile - according to the list in the appendix;
• 4 pcs. of PANHEAD screws in matching color;
• 2 pcs. of TX20 INOX-U4 screws.
