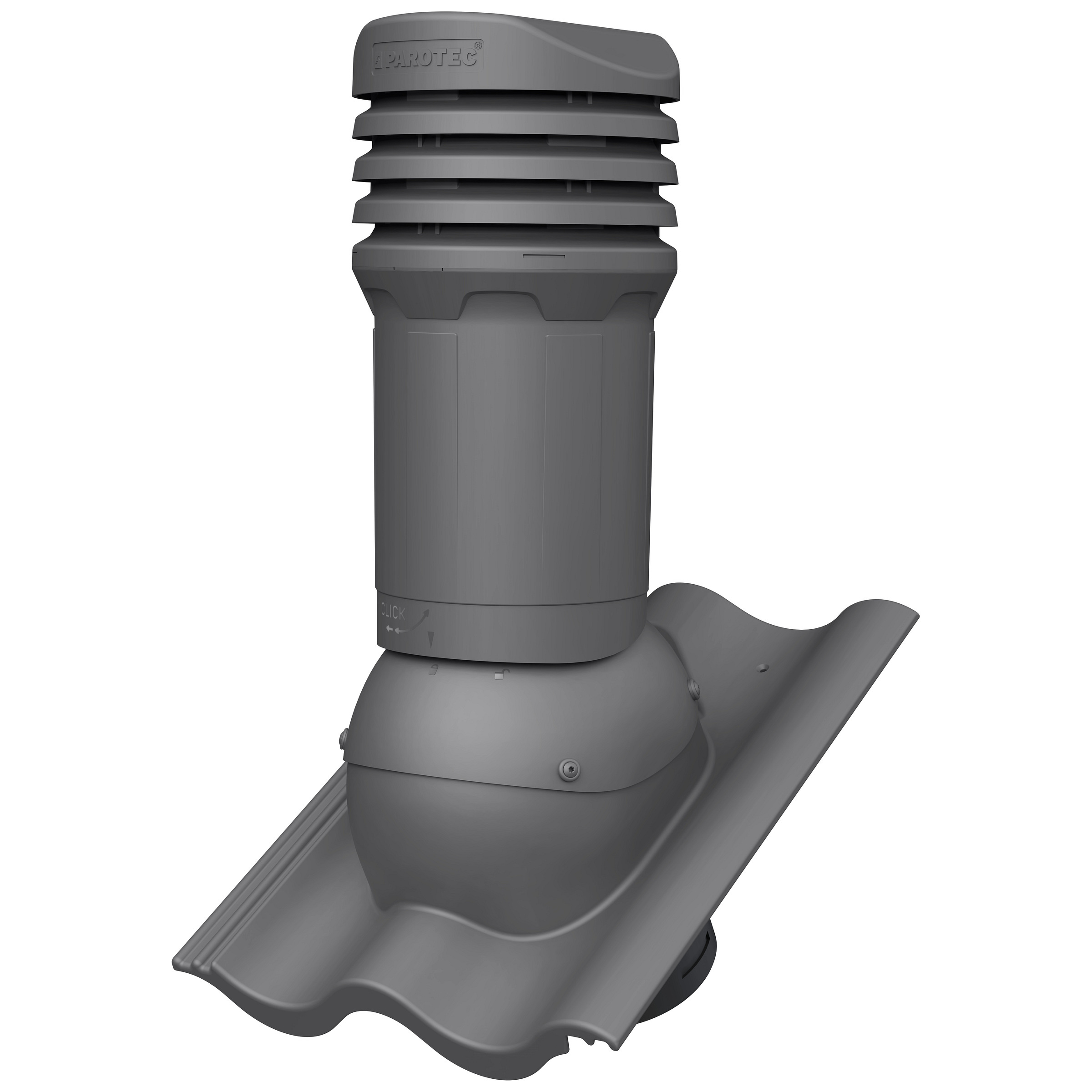

Insulated roof vent FLUXAR Ø125mm for ceramic and concrete tiles

Insulated roof vent FLUXAR DN 125mm

for ceramic and concrete tiles

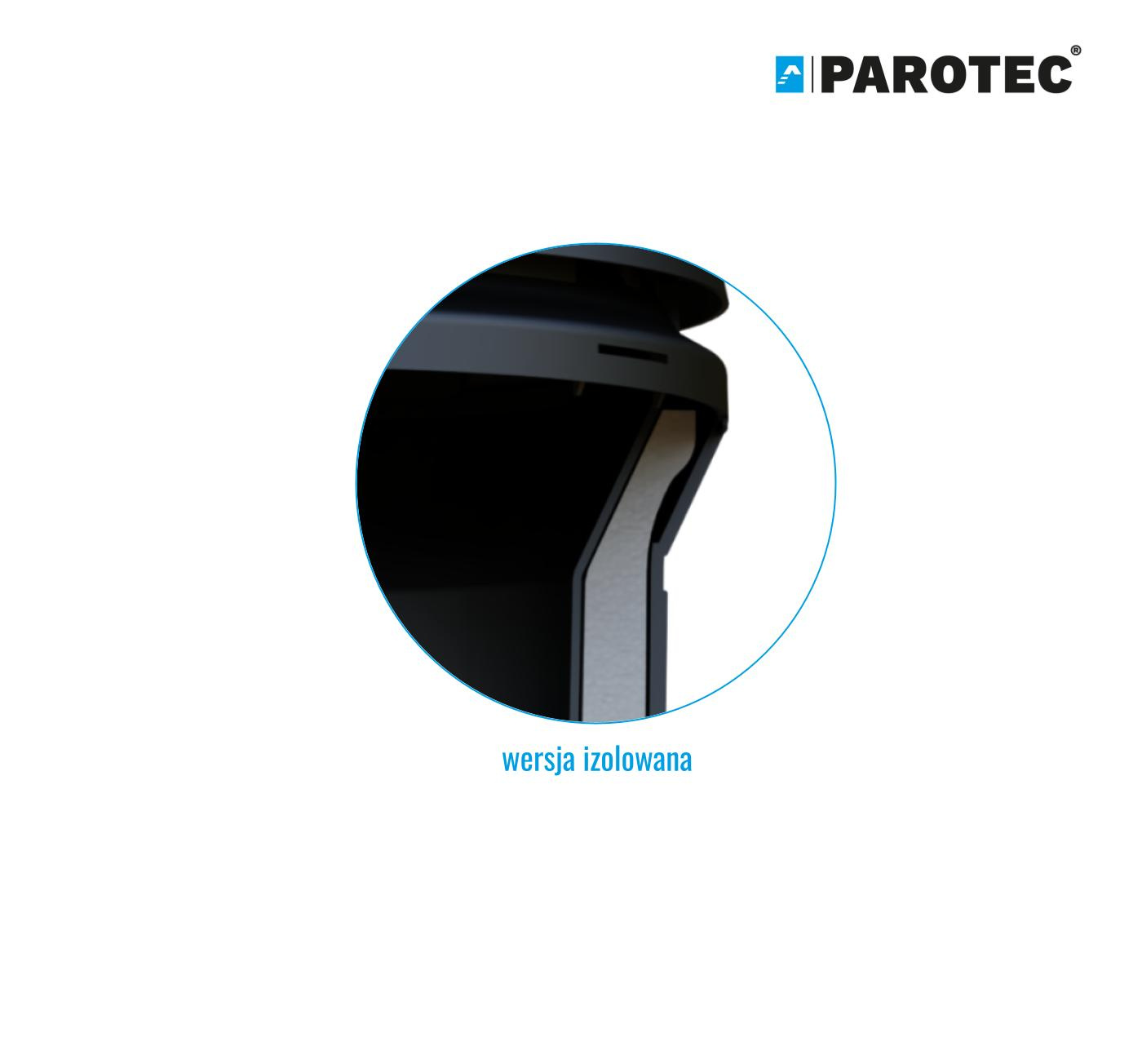

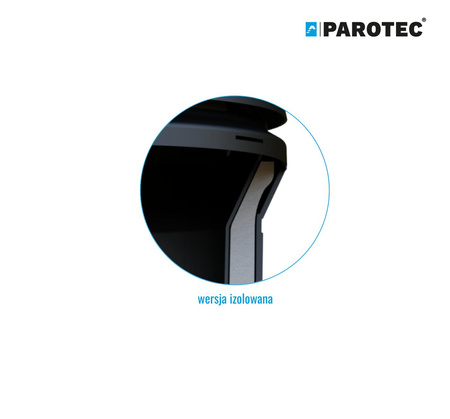

Insulated roof vent DN125 - The insulated version is provided with an additional thermal insulation layer that minimizes the formation of condensation in the roof vent duct. The roof vent consists of elements connected by the "click" method, which allows for quick assembly and disassembly of the cowl, for example, for technical inspection. Mounted within the range of adjustment from 0° to 50°. The package contains all the components necessary for the installation of the roof vent. For a list of roofing tile models, see the appendix.

The FLUXAR system comes in two variants:

• KOS - with condensate drain - allowing excess condensate to be drained outside the roof vent,
• KIZ - insulated - preventing condensation in the ventilation duct.

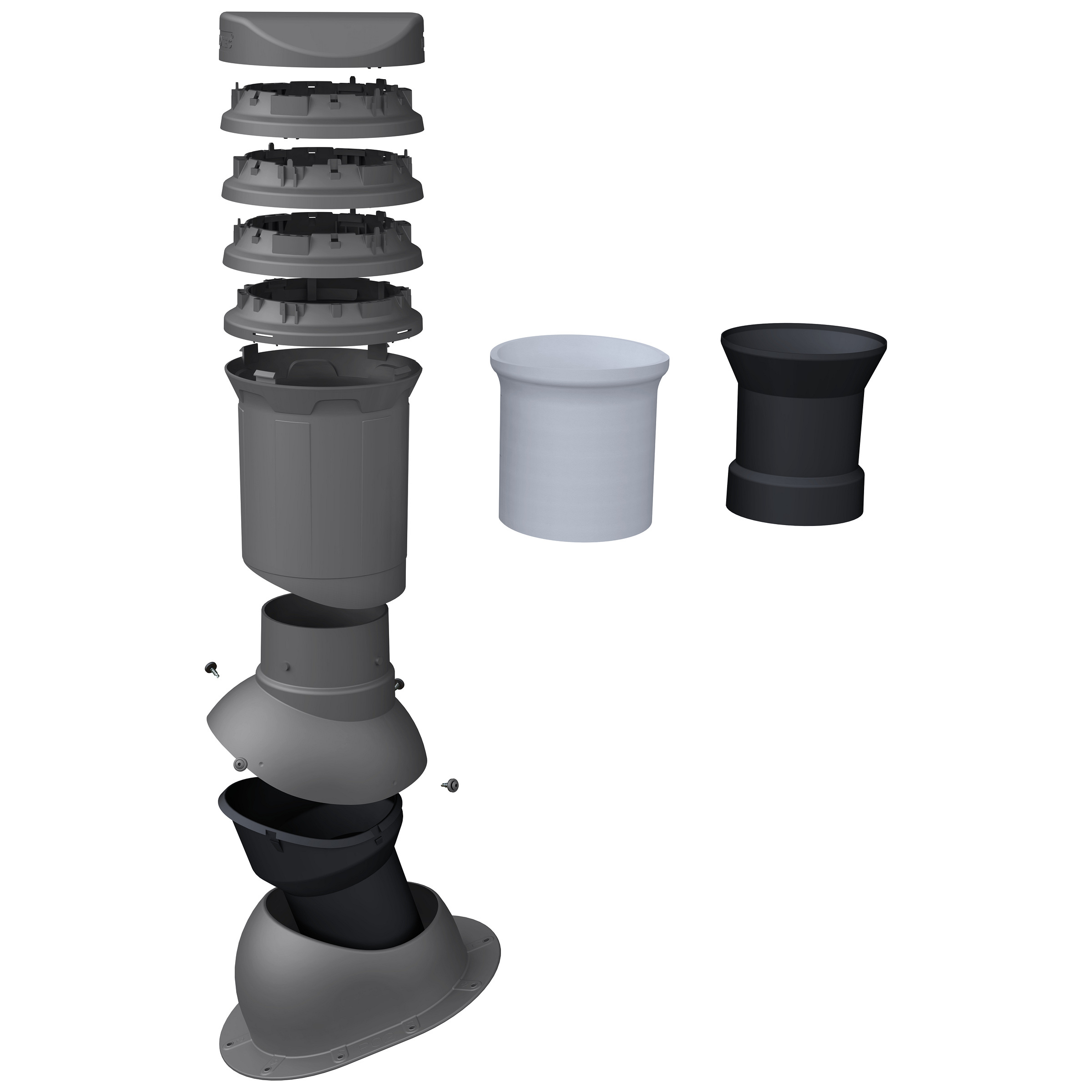

Package includes:

• nasada kominka w wersji izolowanej;
• czasza;
• króciec;
• adapter with the profile of the corresponding tile - according to the list in the appendix;
• 4 pcs. of PANHEAD screws in matching color;
• 2 pcs. of TX20 INOX-U4 screws.
