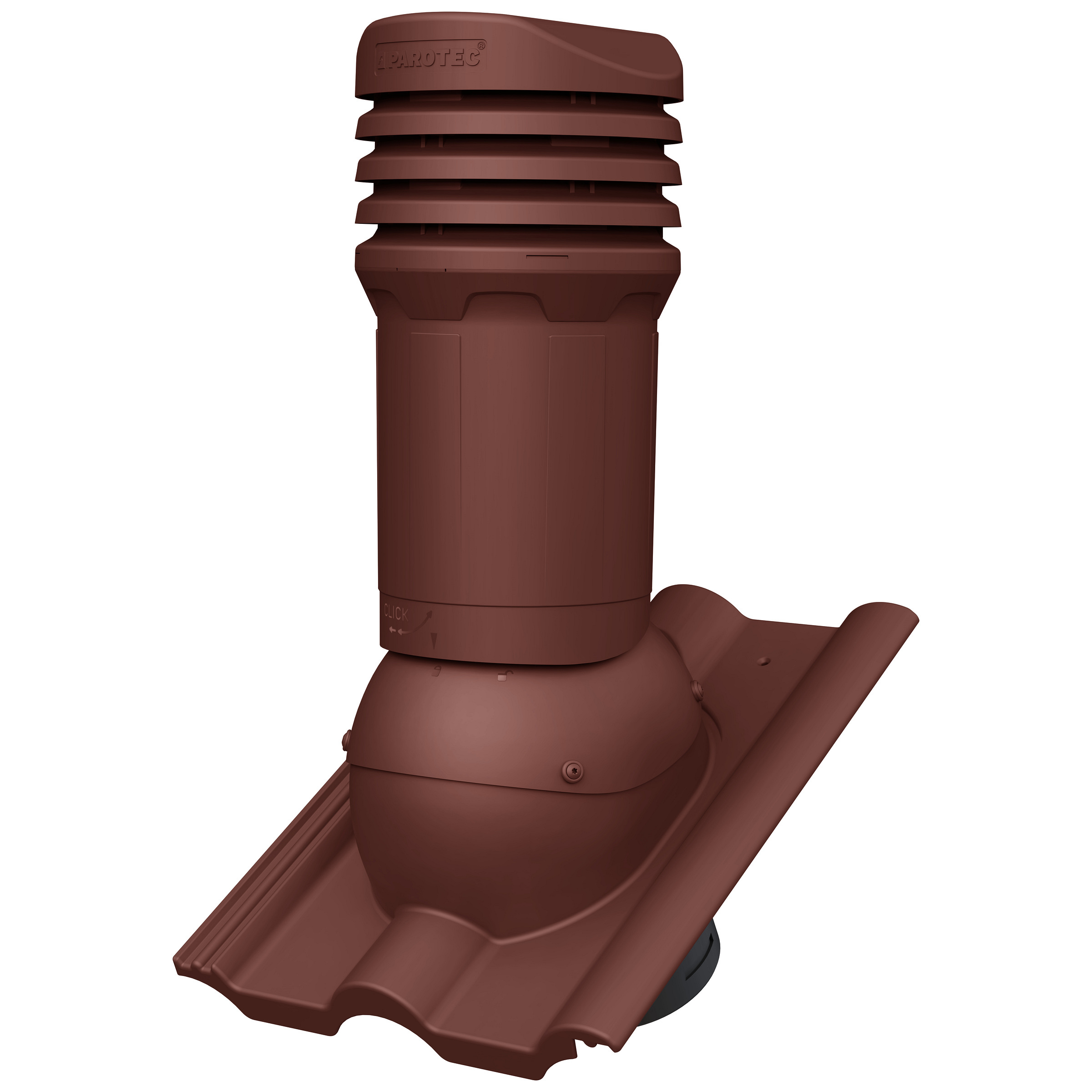

Insulated roof vent FLUXAR Ø125mm for ceramic and concrete tiles
- Insulated roof vent with condensate drain, designed for ceramic and concrete tiles.
Easy return of products within 14 days from the date of purchase without giving reasons
Free delivery from 984,00 zł
Insulated roof vent FLUXAR Ø125mm for ceramic and concrete tiles
Adapter:D05_Braas/Romańska, Prodach/Podwójna Rzymska, Benders/Mecklenburger

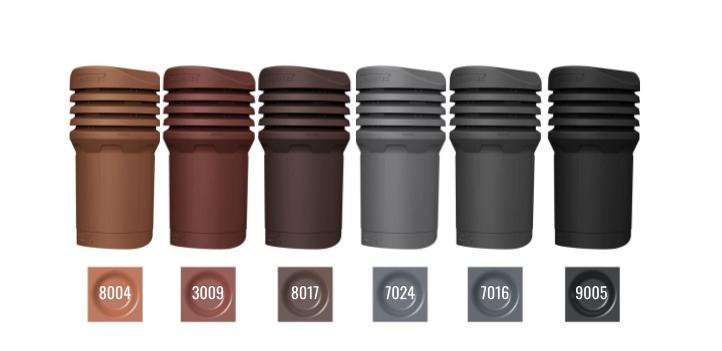

Color:Red - RAL 3009
Parameters
Producer:
Product code:
KIZ.125.D05.3009
Series:
Adapter:
D05_Braas/Romańska, Prodach/Podwójna Rzymska, Benders/Mecklenburger
Color:
Red - RAL 3009

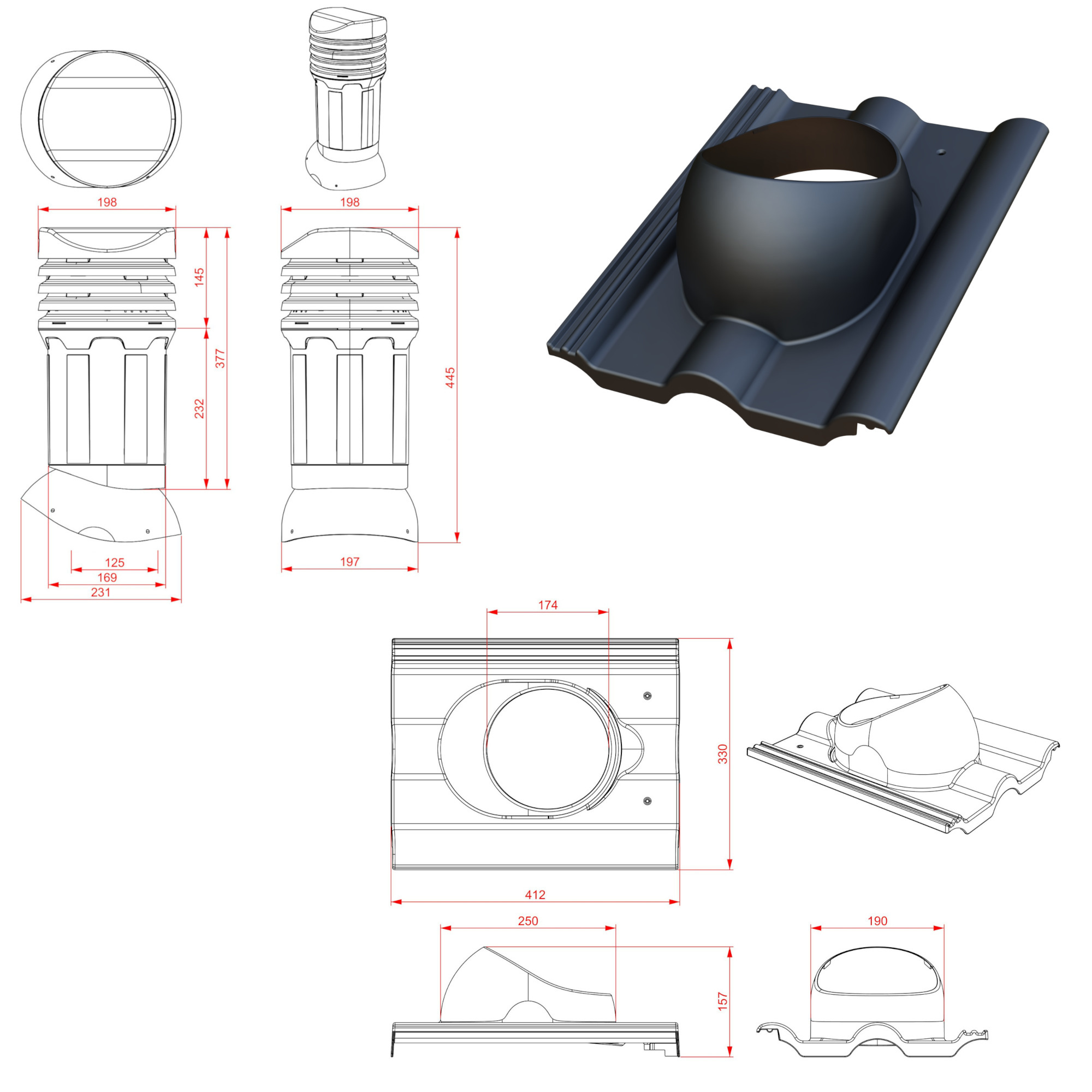

Diameter:
Ø125 mm
Regulated tilt angle:
0° to 50°
Height:
375 mm
Purpose of use:
Tile
Condensation:
Insulation
Version:
Ventilating
Material:
PP - polipropylene
Spirit level:
Yes
Pliki do pobrania
Insulated roof vent FLUXAR DN 125mm
for ceramic and concrete tiles

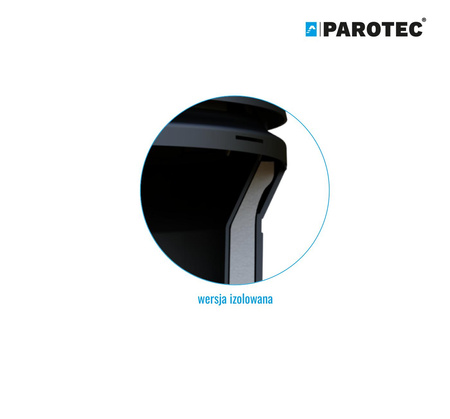

Insulated roof vent DN125 - The insulated version is provided with an additional thermal insulation layer that minimizes the formation of condensation in the roof vent duct. The roof vent consists of elements connected by the "click" method, which allows for quick assembly and disassembly of the cowl, for example, for technical inspection. Mounted within the range of adjustment from 0° to 50°. The package contains all the components necessary for the installation of the roof vent. For a list of roofing tile models, see the appendix.
The FLUXAR system comes in two variants:
- KOS - with condensate drain - allowing excess condensate to be drained outside the roof vent,
- KIZ - insulated - preventing condensation in the ventilation duct.

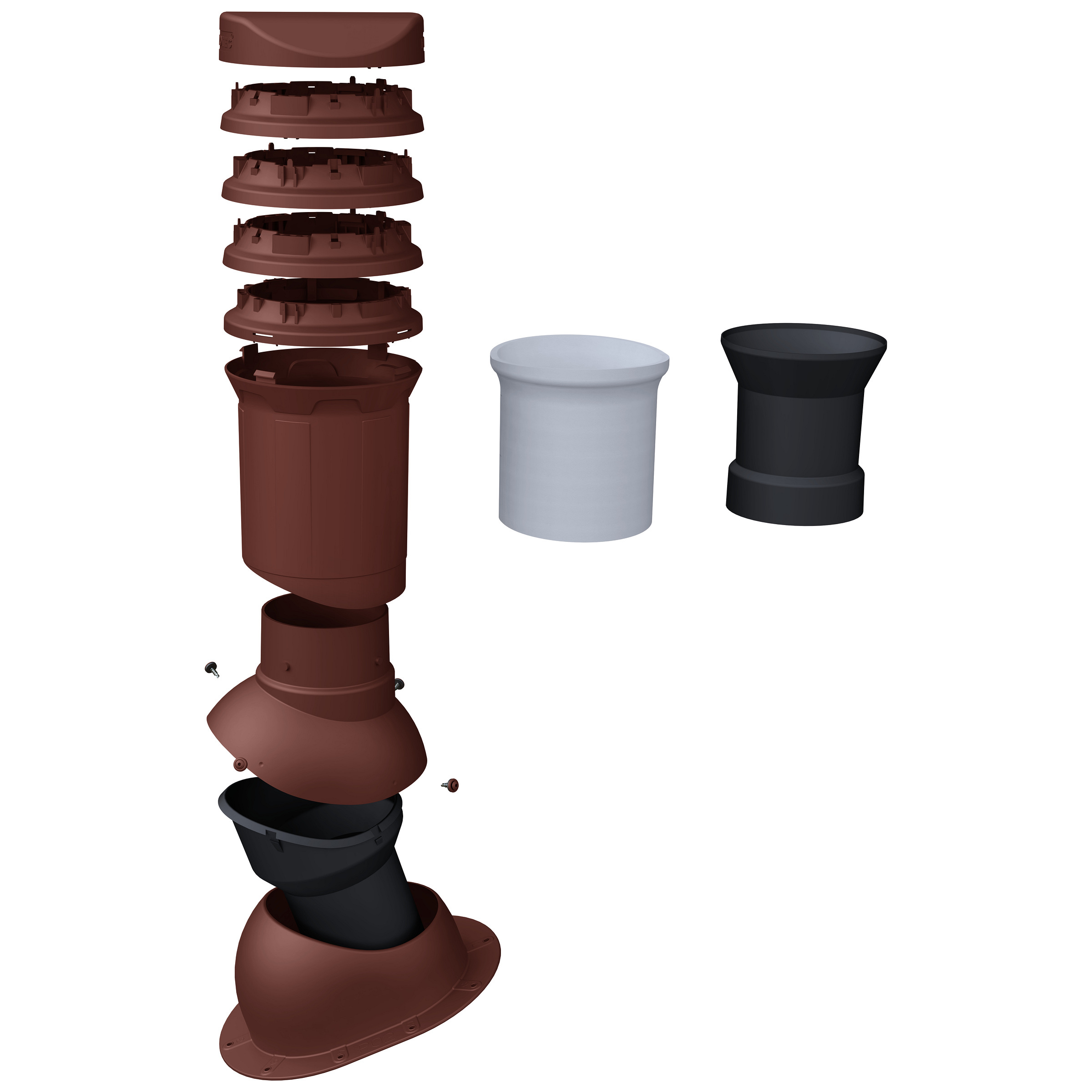

Package includes:
- nasada kominka w wersji izolowanej;
- czasza;
- króciec;
- adapter with the profile of the corresponding tile - according to the list in the appendix;
- 4 pcs. of PANHEAD screws in matching color;
- 2 pcs. of TX20 INOX-U4 screws.
