IZOFLEX insulated ventilating duct 10 rm
- IZOFLEX ventilation duct - aluminum, flexible, insulated pipe for connecting roof vents. Available sizes: 112, 127, 152 and 165 mm.
![IZOFLEX insulated ventilating duct 10 rm](/eng_il_IZOFLEX-insulated-ventilating-duct-10-rm-20652.jpg)
IZOFLEX Ø112 mm
insulated, aluminum ventilation duct 10 rm
IZOFLEX insulated ventilation duct 10 rm - Flexible thermally and acoustically insulated pipe, used for connecting roof vents, air conditioners or recuperation. The internal spiral stiffening of the product guarantees the proper cross-section of the duct, allowing the free flow of air and stabilizing the pressure, and the multilayer structure exhibits damping properties, reducing the intensity of noise from the mechanical installation. Also, the polyester barrier of the inner layer prevents glass fibers from entering the flow of air. The product is fireproof - it has a Class D fire resistance rating.

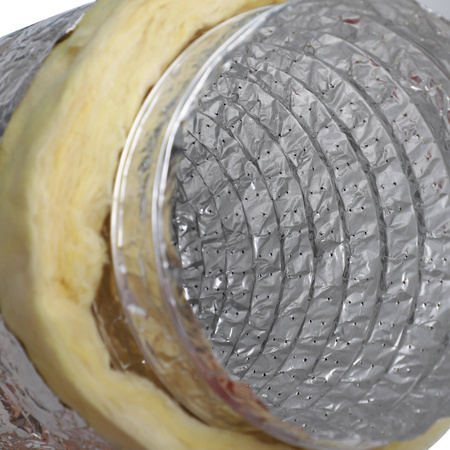

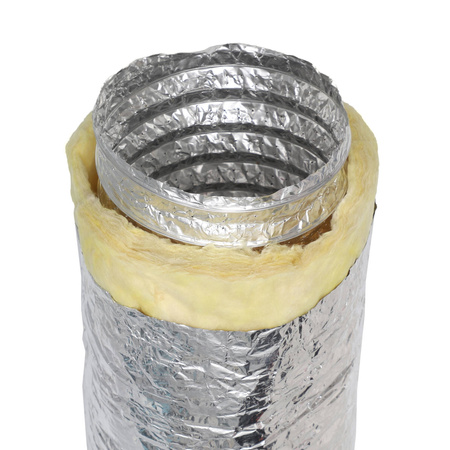

Structure:
inner coating: 3 layers of aluminum and 2 layers of polyester with an infused coil of spring wire
insulation: polyester-coated glass wool 25 mm thick and 16 kg/m3 density
outer coating: 1 layer of aluminum + 2 layers of polyester
*The product is available in four sizes:
