Chimney sweep safety step TECTO DBDC LN1

  • TECTO complete chimney sweep safety step for installation on concrete or ceramic tile roofing.
Chimney sweep safety step TECTO DBDC LN1
Chimney sweep safety step TECTO DBDC LN1
Chimney sweep safety step TECTO DBDC LN1
Chimney sweep safety step TECTO DBDC LN1
Add to compare
Easy return of products within 14 days from the date of purchase without giving reasons
Free delivery from 984,00 zł
Chimney sweep safety step TECTO DBDC LN1
Chimney sweep safety step TECTO DBDC LN1
Color:Anthracite - RAL 7016
Parameters
Product code:
TC.ST2.LN1.7016
Dimension:
25 cm x 15 cm
Color:
Anthracite - RAL 7016
Material:
Stal ocynkowana
Galvanizing thickness:
≥ 55 μm
Paint layer thickness :
≥ 60 μm
Footboard thickness:
2 mm
Support flat bar thickness:
4 mm
Width of support flat bar:
30 mm
Roof slope angle:
15° - 50°
Zakres regulacji:
110 - 190 mm







Chimney sweep safety step TECTO DBDC LN1

double-bracketed, hooked to the batten

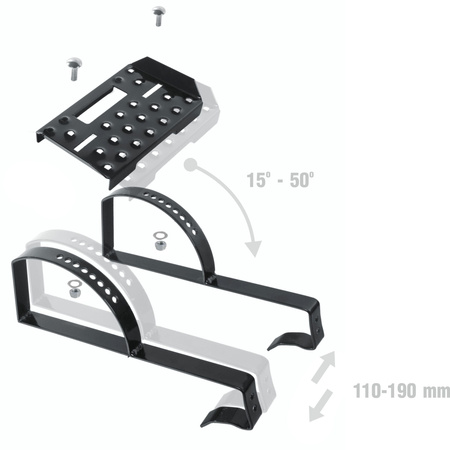

PAROTEC® Chimney sweep safety step TECTO -  double supported step made of hot-dip galvanized and powder-coated steel sheet. The steps should be installed at 40-50 cm intervals, depending on the pitch of the roof. Special anti-slip embossing make it easier to move between levels. The kit gives you the ability to adjust both the angle of the platform in the range of 15°- 50° and the width of the bracket spacing of 110 -190 mm, which makes it easy to adapt to the tile layout. The use of two supports gives stability similar to a chimney bench, while retaining the advantages of a step with a single support.

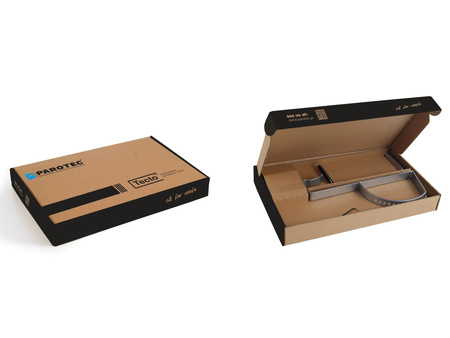

NOTE - kits in a box are dedicated to concrete or ceramic tile roofing!

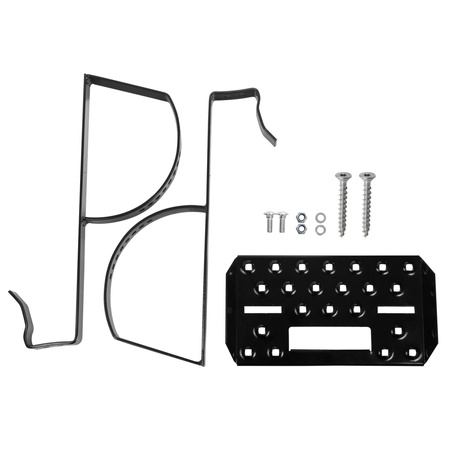

The kit includes:

  • TECTO platform
  • two DBDC LN1 tile brackets (hooked)
  • two locking screws
  • two washers
  • two self-locking nuts
  • two SPAX screws
